Description

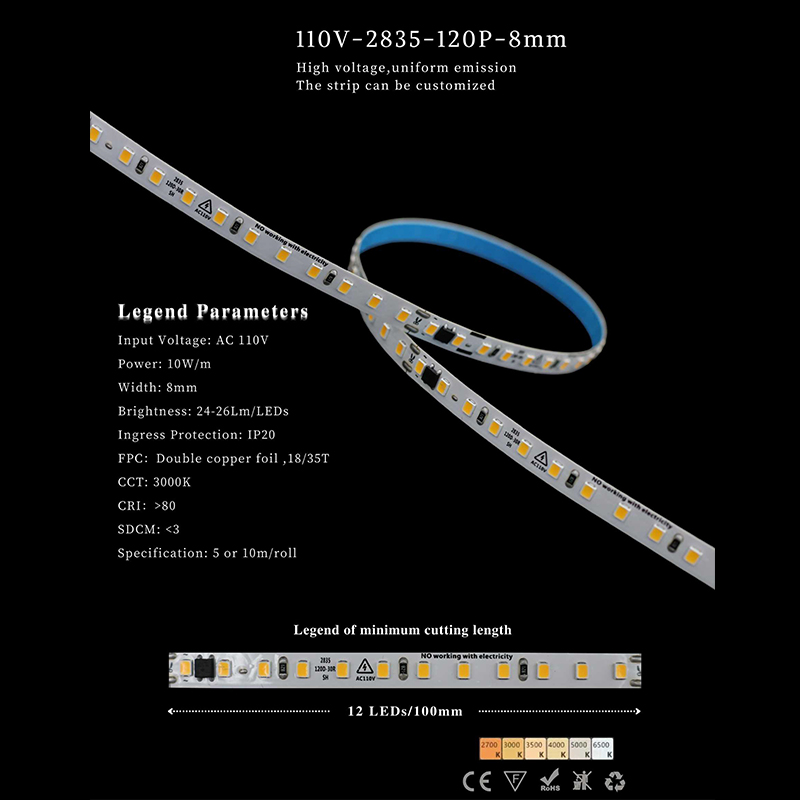

YD37P – 110V 2835 LED Strip Light (120LEDs/m, 8mm, 3000K)
The YD37P model is a 110V LED strip designed for long-distance, continuous lighting applications that demand simplicity and stability. Powered by AC110V, it allows installers to avoid complex low-voltage power supplies while delivering the same level of brightness and performance found in standard 12V or 24V LED strips.
Using 2835 chips at 120 LEDs per meter, the YD37P provides uniform emission and warm 3000K illumination, perfect for commercial or architectural environments.
Key Specifications
-
Voltage: AC110V
-
Power: 10W/m
-
LED Type: SMD 2835
-
Density: 120 LEDs/m
-
CCT: 3000K (Warm White)
-
CRI: >80
-
Brightness: 24–26LM/LED
-
Width: 8mm
-
Minimum Cut Length: 12 LEDs / 100mm
-
FPC: Double copper foil, 18/35T
-
IP Rating: IP20
-
SDCM: <3
-
Roll Options: 5m or 10m
Key Advantages
1. Direct-to-AC Operation (110V)
Unlike traditional low-voltage LED tapes that require a bulky power supply, the YD37P connects directly to 110V AC, enabling simple plug-and-play setup over long distances.
2. Safer Installation, Lower Cost
With fewer power supply conversions and longer single-run capabilities, installation labor is reduced and fewer accessories are needed—making this solution ideal for wholesale and B2B deployment.
3. Consistent Warm Lighting
Its 3000K warm white color temperature is ideal for interior ambient lighting. This creates an inviting and relaxing atmosphere perfect for hotels, homes, or hospitality spaces.
4. Durable FPC and Copper Build
The double-layer copper foil ensures stability and resistance to voltage drops over long runs. The IP20 rating is optimized for dry interior use.
Applications
-
Architectural Cove Lighting
Perfect for long cove channels where a single uninterrupted 10-meter roll is preferred. -
Hotel & Hospitality Lighting
Used in guest room perimeters, headboard accents, and decorative recesses to produce a warm ambiance. -
Retail Display & Shelving
Provides even illumination for merchandise shelves without requiring additional power splitters. -
Residential Corridors & Staircases
Especially useful where low-profile linear lighting needs to be installed over long distances with minimal maintenance. -
Signage & Backlighting
Works well for 110V environments such as outdoor sign boxes or indirect sign borders in commercial locations.
Wiring & Control Notes
-
Important: Use a dedicated 110V AC driver and ensure safety labeling is in place.
-
Cuttable every 100mm (12 LEDs) to allow precision trimming.
-
Not dimmable unless used with compatible AC dimmers.
-
Avoid wet locations unless sealed within IP65+ silicone sleeve.
YD36P – 24V COB Flowing Strip 320LEDs – 8mm – 6500K
Lighting Safety Guidelines – IES.org
The YD37P high voltage LED strip offers reliable, continuous illumination with fewer technical hurdles. Its 110V direct input eliminates the need for low-voltage adapters, while 120 LEDs per meter ensure a dense, uniform glow for any commercial or architectural project.
It’s an ideal solution for professional installers, architects, and contractors looking for scalability, stability, and simplicity in LED linear lighting.
