Description
The YD39 – 220V LED strip light with integrated IC is a powerful, visually dynamic lighting solution designed for high-voltage applications. Featuring 120 LEDs per meter and a compact 8mm width, this strip light delivers crisp, even illumination across long distances while offering flowing effects that enhance visual design. Whether you’re outfitting architectural accents, signage borders, or commercial interiors, the YD39 brings both form and function.
What Sets the YD39 Apart?
Unlike standard high-voltage strips, the YD39 integrates an IC (Integrated Circuit), allowing for special lighting effects such as “flowing” or dynamic wave-like movements. This makes it not just a practical lighting product, but also a creative tool for designers and architects seeking to add motion and ambiance.
Because it’s a high voltage LED tape, it can be used for long continuous runs without the voltage drop typical of low-voltage strips. That means less hassle during installation, fewer power feeds, and a neater overall setup.

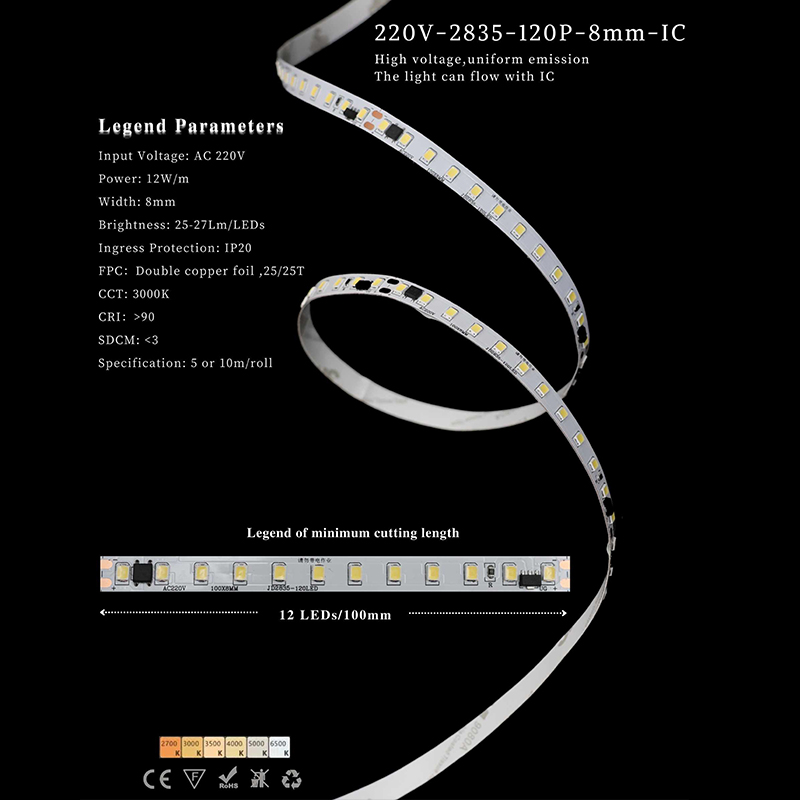

Key Technical Specs
-
Input Voltage: AC 220V
-
Power: 12W per meter
-
LED Type: 2835 SMD
-
LED Density: 120 LEDs/m
-
Width: 8mm
-
Brightness: 25–27 lumens per LED
-
Color Temperature: 3000K (Warm White)
-
Color Rendering Index (CRI): >90
-
Cutting Unit: 12 LEDs / 100mm
-
Beam Angle: 120°
-
Ingress Protection: IP20 (Indoor use)
-
FPC: Double copper foil, 25/25T
-
SDCM: <3
-
Roll Lengths: Available in 5m or 10m rolls
These characteristics make the YD39 IC LED strip a go-to product when high brightness, color consistency, and design flexibility are required.
Best Applications
This flowing LED strip light can be used in both residential and commercial contexts, including:
-
Architectural outlines with motion effects
-
Accent lighting for signage or logos
-
Retail displays
-
Backlighting for furniture or glass surfaces
-
Entertainment and event setups
Its thin profile and ease of installation allow you to integrate it discreetly while taking advantage of the motion-control features provided by the IC chip.
Installation Notes
As a 220V LED strip light, the YD39 must be handled with care and installed using qualified electrical components. Be sure to:
-
Use properly rated power accessories
-
Avoid environments with moisture unless additional protection is applied
-
Mount in well-ventilated spaces to maintain heat dissipation
While IP20 rated for indoor dry areas, it can be enclosed in waterproof aluminum channels for semi-damp environments.
Energy and Quality Compliance
The YD39 meets CE and RoHS standards, ensuring that it is manufactured without hazardous substances and follows safe electrical practices. It’s energy-efficient despite its brightness level, offering high lm/W performance with accurate CCT output thanks to a SDCM rating below 3, ensuring minimal color deviation.
Integration with Your Projects
Need matching indoor lighting for lower-voltage installations? Consider our YD27 – 24V 2835 240P Double Row LED Strip as a complementary solution.
Whether you are customizing architectural displays, upgrading hospitality lighting, or enhancing branding visibility, the YD39 IC strip gives you the flexibility to do so with elegance and efficiency.
